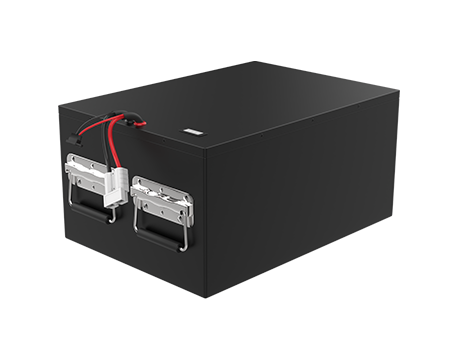

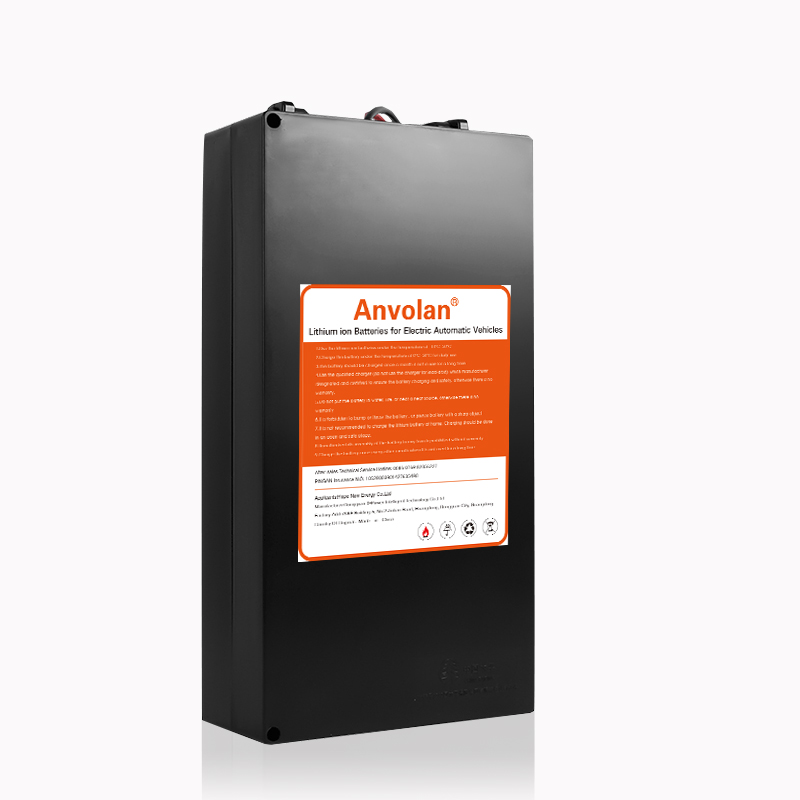

Model: XP-16S-60V-CCA
Casing: ABS+PC
Cell: Li-ion 18650
Voltage: 60V
Capacity: 12Ah, 15Ah, 20Ah, 24Ah
Cycle Life: 800
Input & Output Port: 3PIN Male
Charge Cut-Off Voltage: 68V
Charge Current: 5A
Discharge Current: 30A max
Discharge Current (Peak): 180A (50mS)
Discharge Cut-Off Voltage: 43.2V
Charge Temperature: 0℃-45℃
Discharge Temperature: -20℃-55℃
Protection: Over Charge, Over Discharge, Over Current, Short Circuit
Size: 360*248*95mm
Weight: 7.35KG max
Certificate: MSDS, UN38.3, Sea Transfer of Goods
Package: UN Carton
Warranty: 12 months
Porduct Spacification Download

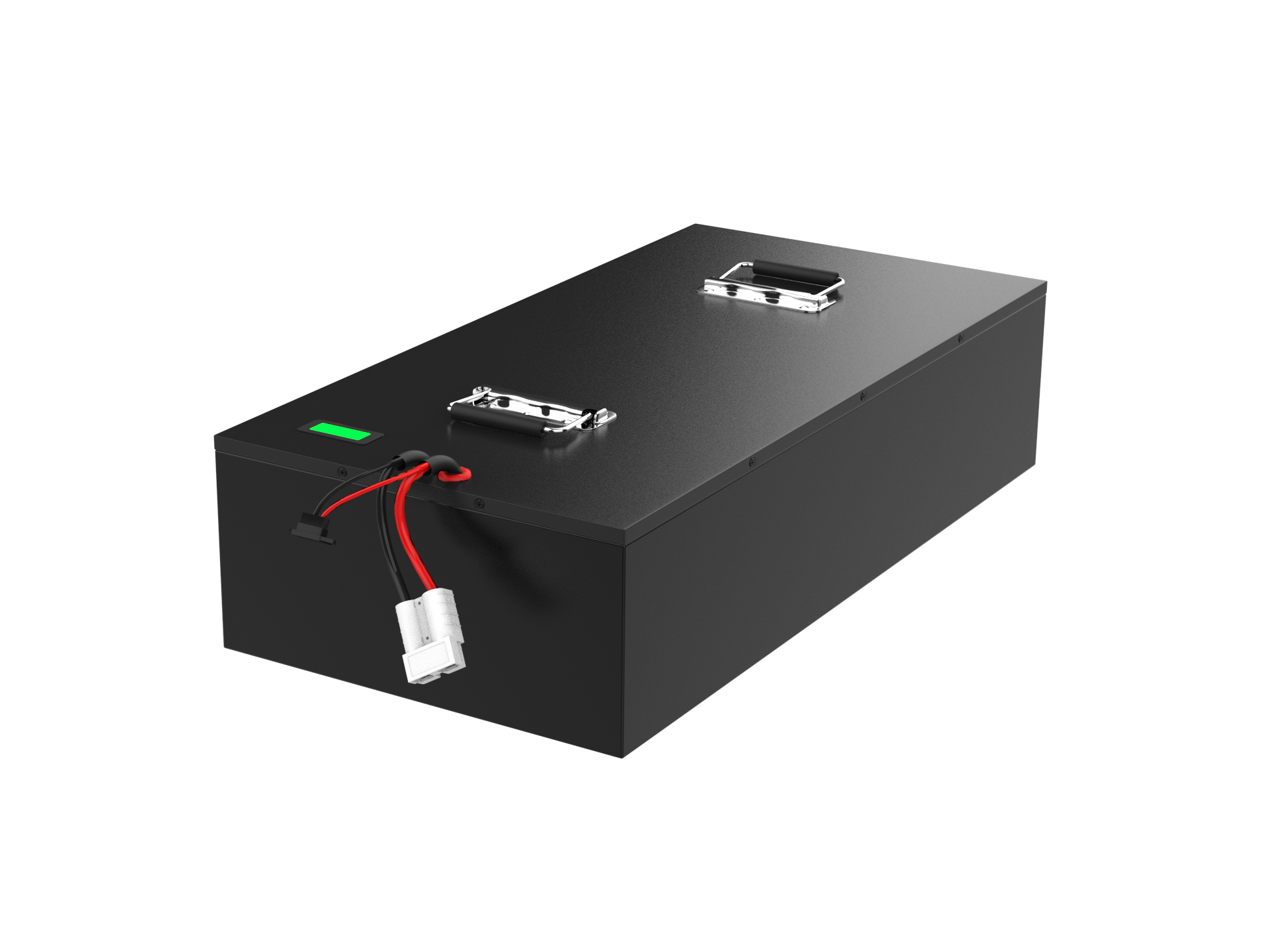

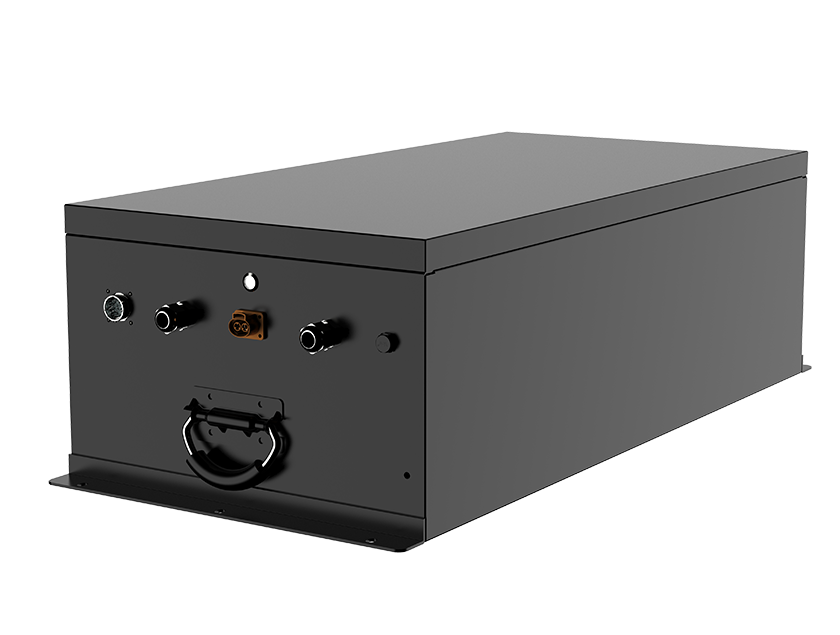

Model: XP-16S-60V-CCM
Casing: Metal
Cell: Li-ion 18650
Voltage: 60V
Capacity: 12Ah, 15Ah, 20Ah, 24Ah
Input & Output Port: Customziable
Cycle Life: 800
Charge Cut-Off Voltage: 68V
Charge Current: 5A
Discharge Current: 30A max
Discharge Current (Peak): 180A (50mS)
Discharge Cut-Off Voltage: 43.2V
Charge Temperature: 0℃-45℃
Discharge Temperature: -20℃-55℃
Protection: Over Charge, Over Discharge, Over Current, Short Circuit
Size: 345*162*70mm
Weight: 6.59KG max
Certificate: MSDS, UN38.3, Sea Transfer of Goods
Package: UN Carton
Warranty: 12 months
Porduct Spacification Download
