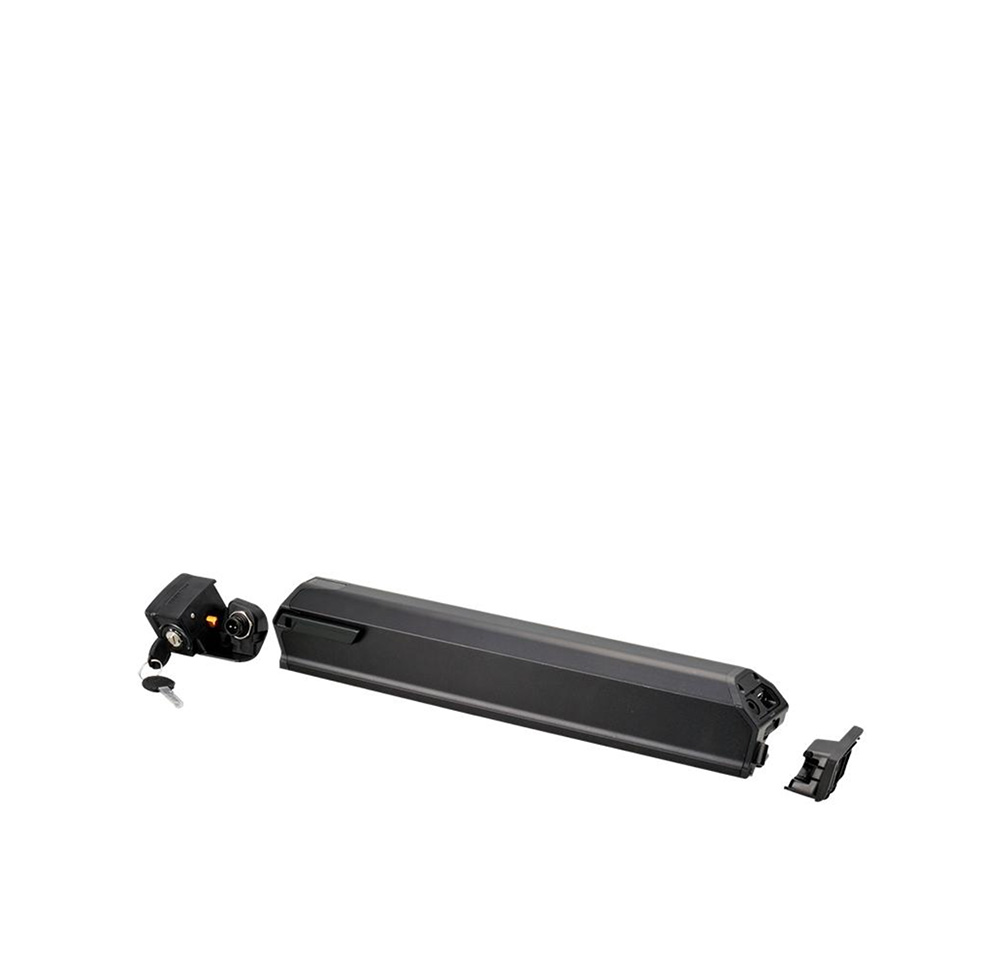

| Model | XP-EB-IDMAX (Inner Battery Case Dorado) |
| Casing | Aluminum +ABS |
| Cell | Samsung INR21700-48G |
| Voltage | 36V & 48V |
| Capacity | Customized |
| Cycle Life | 1000>80% for INR21700-48G |
| Charge Cut-Off Voltage | 42V or 54.6V |
| Charge Current | 5A max |
| Discharge Current | 20A max |
| Discharge Current (Peak) | 30A (500mS), 70A (50mS) |
| Discharge Cut-Off Voltage | 28V or 36.4V |
| Charge Port | DC2.1 (3Pin optional extra cost USD0.65) |
| Discharge Port | 2Pin (5Pin optional extra cost USD0.95) |
| Power Indicator | 4 LED |

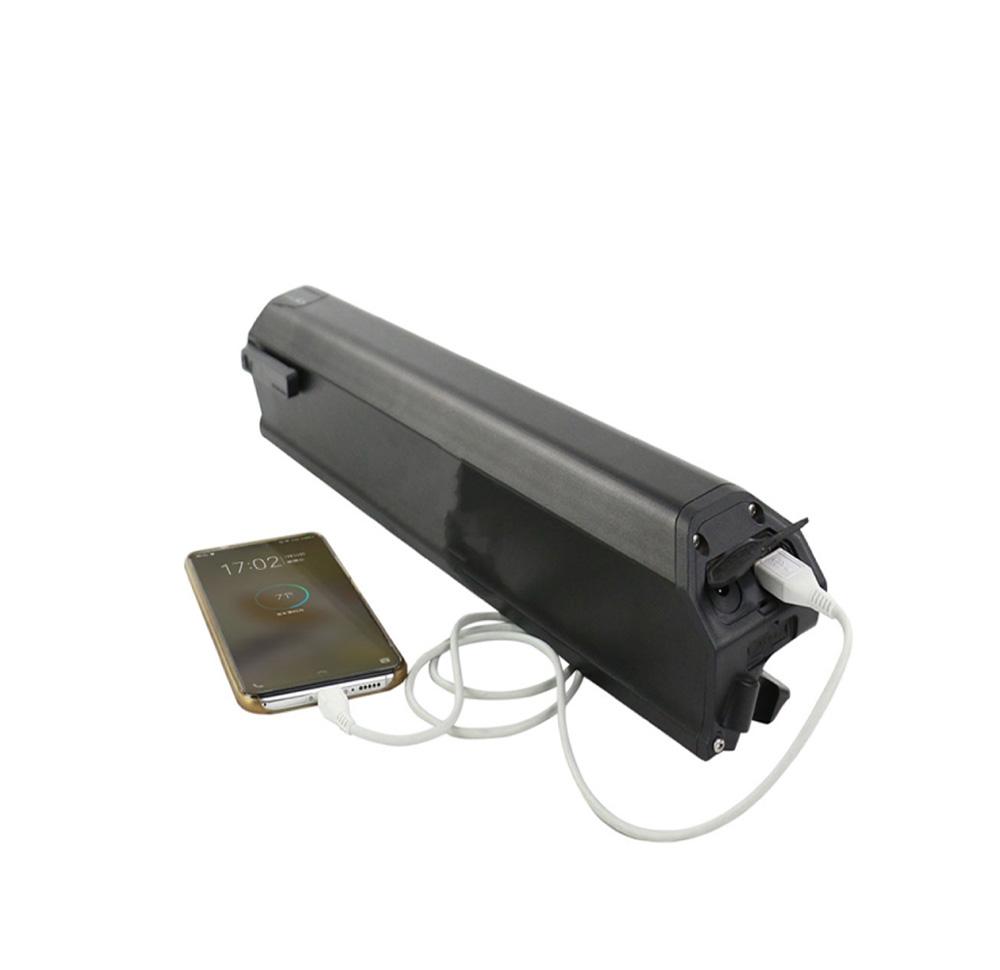

| USB Port | Yes, 5V Output |
| Charge Temperature | 0℃~45℃ |
| Discharge Temperature | -10℃~45℃ |

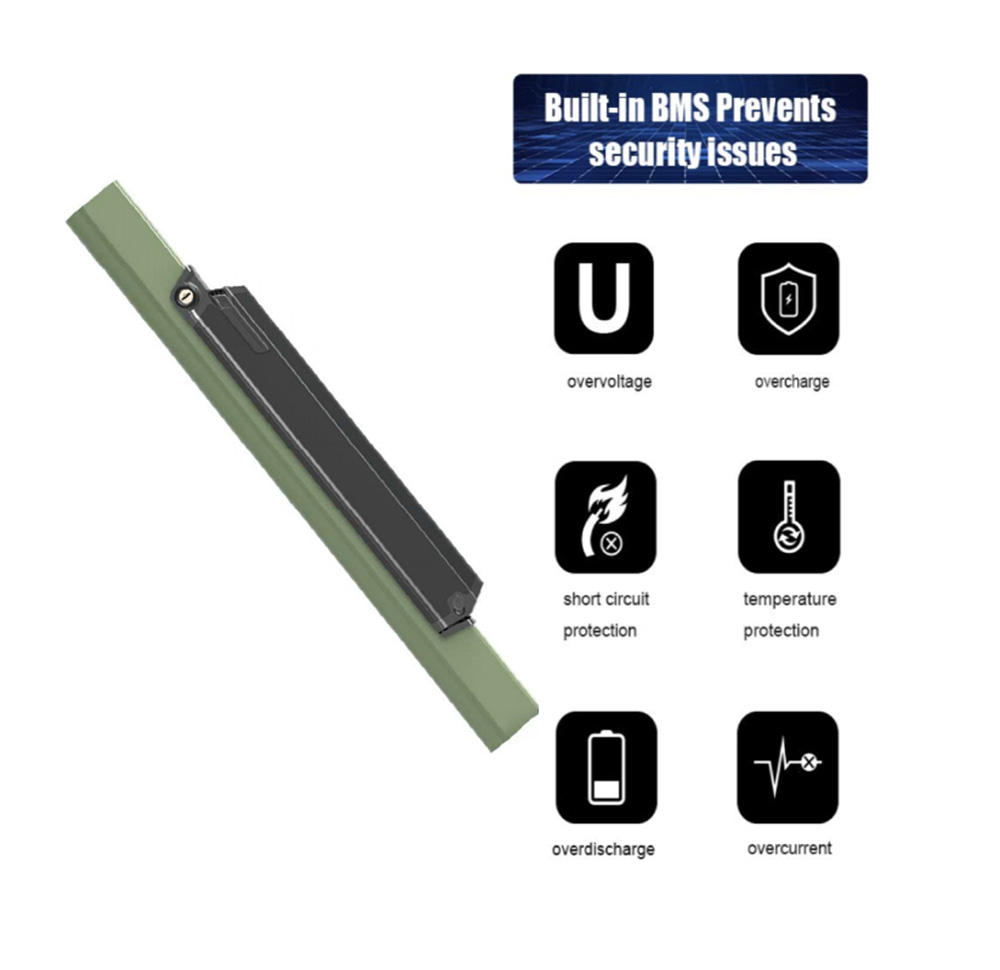

| Protection | Over Charge, Over Discharge, Over Current, Short Circuit，Cell Balance |
| Size: | 457*79*104mm (L*W*H） |
| Weight | KG max |
| Certificate | UN38. |
| Package | UN Carton |
| Warranty | 12 months |
