| Model | XP-EB-DS6C (Down Tube Battery Pack Tiger Shark) |
| Casing | ABS |
| Cell | Samsung INR1865-35E |
| Voltage | 36V & 48V |
| Capacity | Customized |
| Cycle Life | 500>70% |
| Charge Cut-Off Voltage | 42V or 54.6V |
| Charge Current | 5A max |
| Discharge Current | 20A max |
| Discharge Current (Peak) | 30A (500mS), 70A (50mS) |
| Discharge Cut-Off Voltage | 28V or 36.4V |
| Charge Port | DC2.1 (3Pin optional extra cost USD0.55) |
| Discharge Port | 2Pin (5Pin optional extra cost USD1.35 |

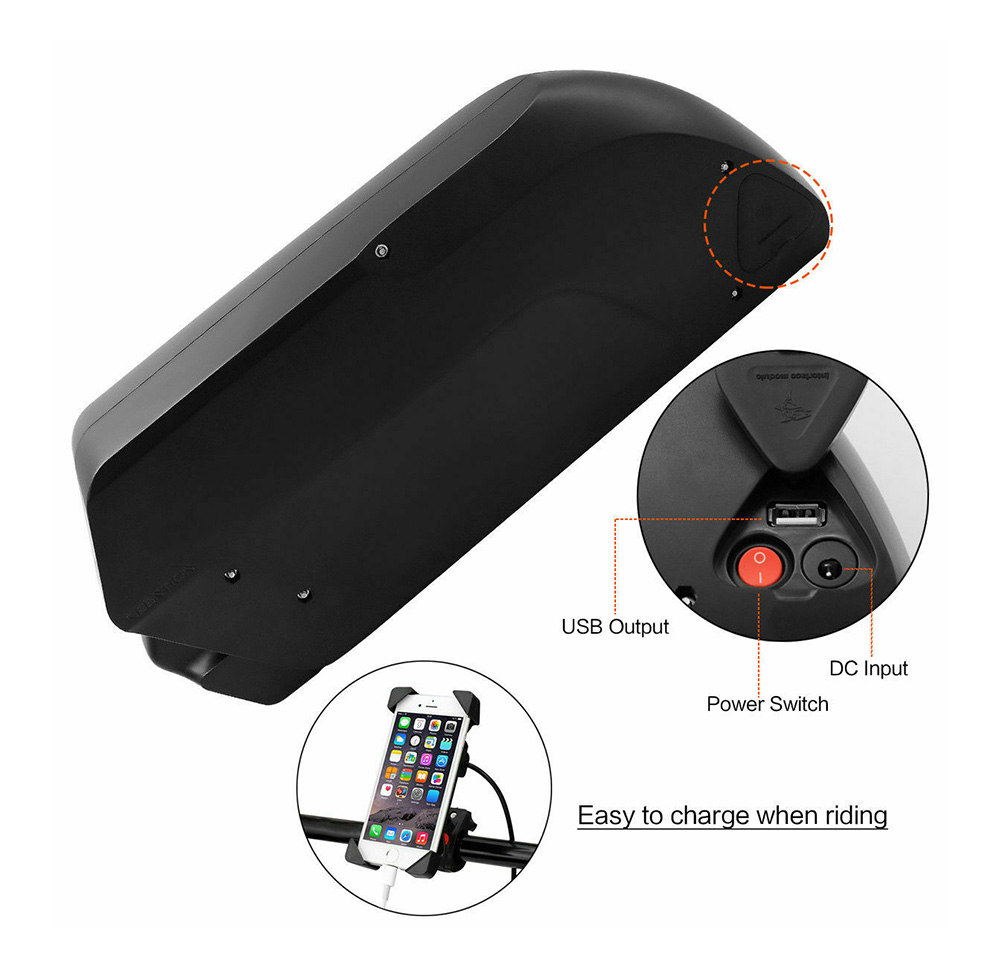

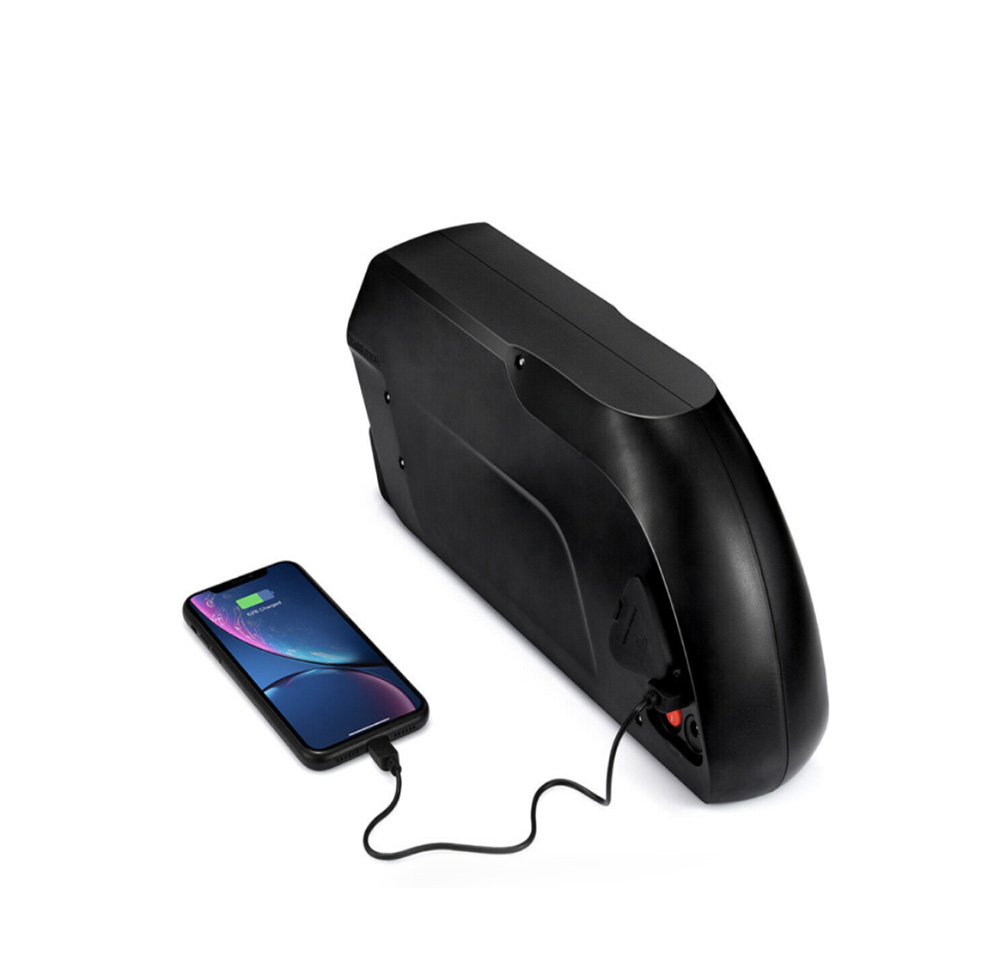

| USB Port | Yes |
| Power Indicator | 4 LED |
| Switch | Yes, |
| Controller box | Optional extra cost USD0.85 |
| Charge Temperature | 0℃~45℃ |
| Discharge Temperature | -10℃~45℃ |
| Protection | Over Charge, Over Discharge, Over Current, Short Circuit，Cell Balance |
| Size: | 343*78*89mm |
| Weight | KG max |
| Certificate | UN38.3 |
| Package | UN Carton |
| Warranty | 12 months |
