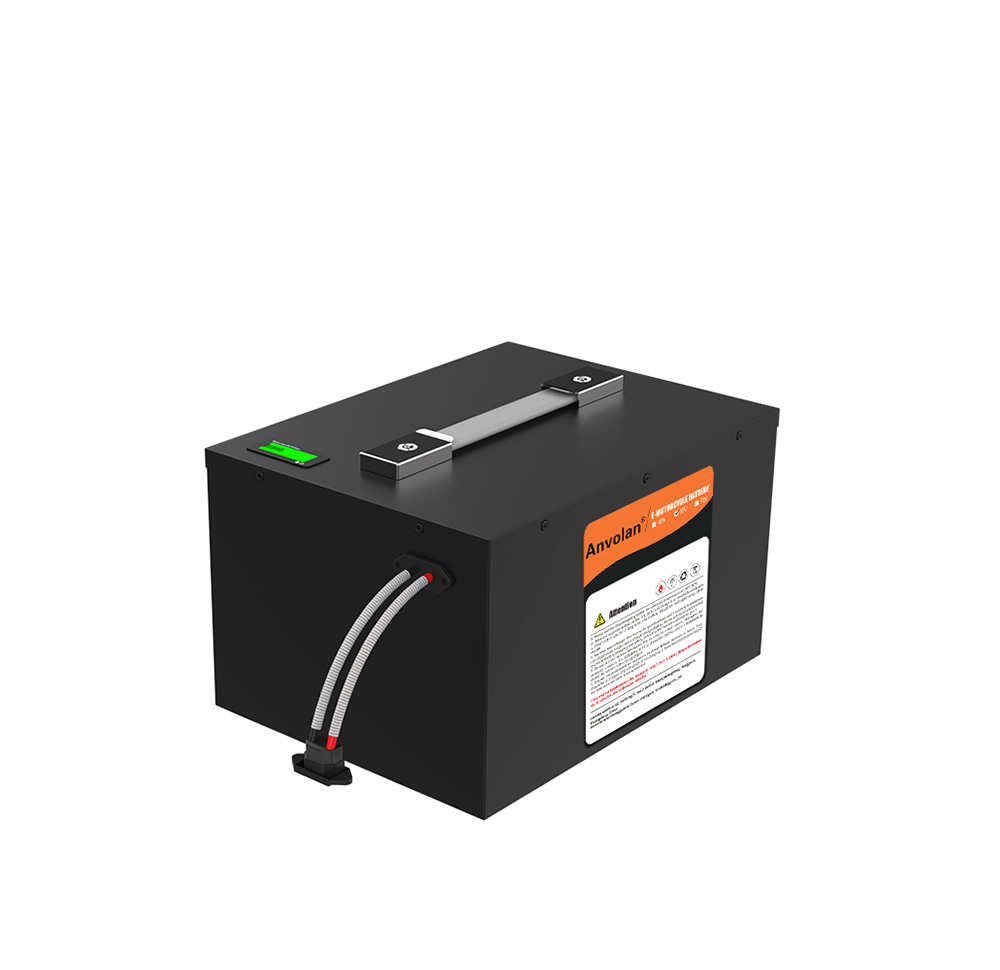

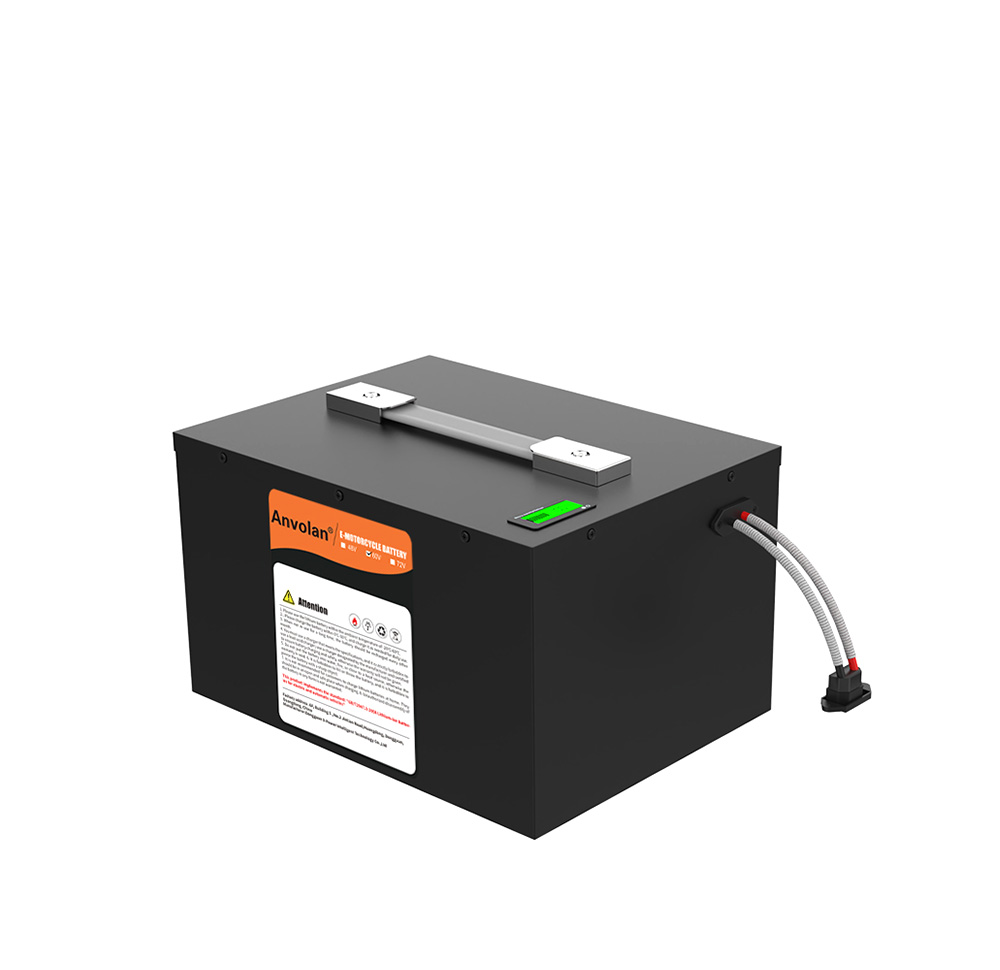

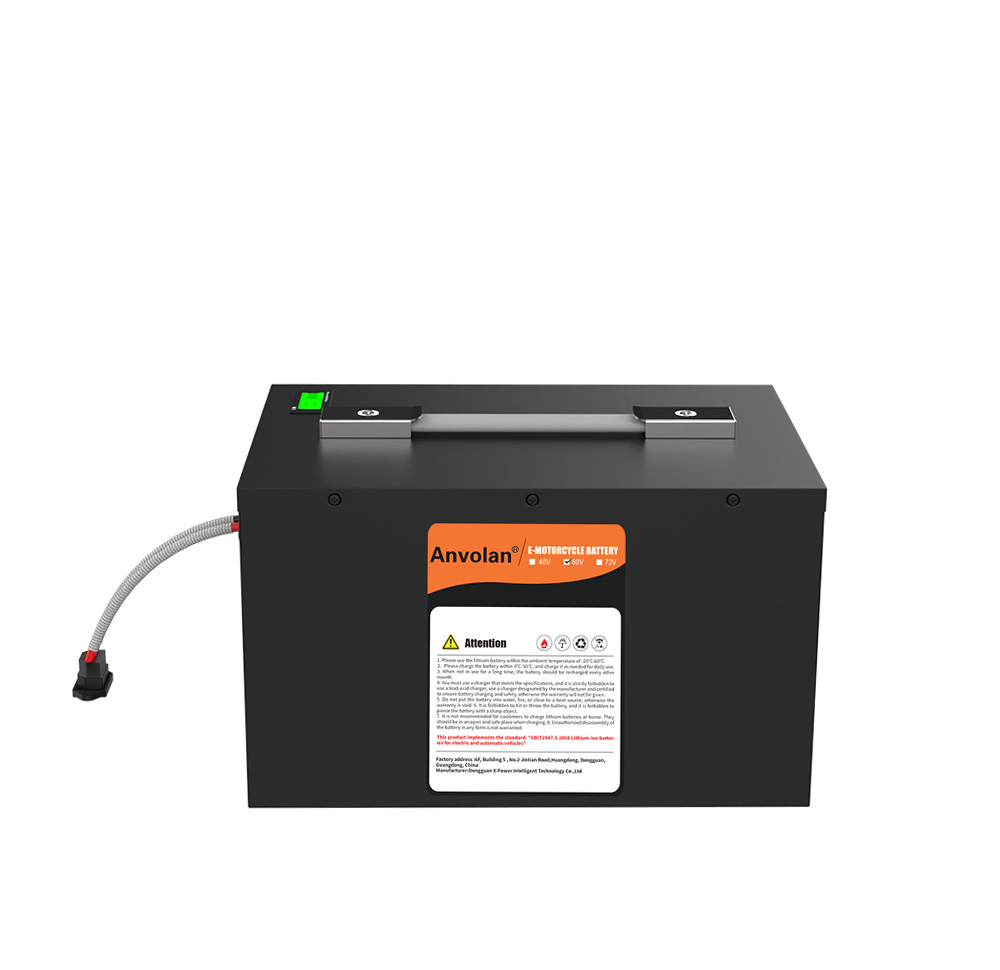

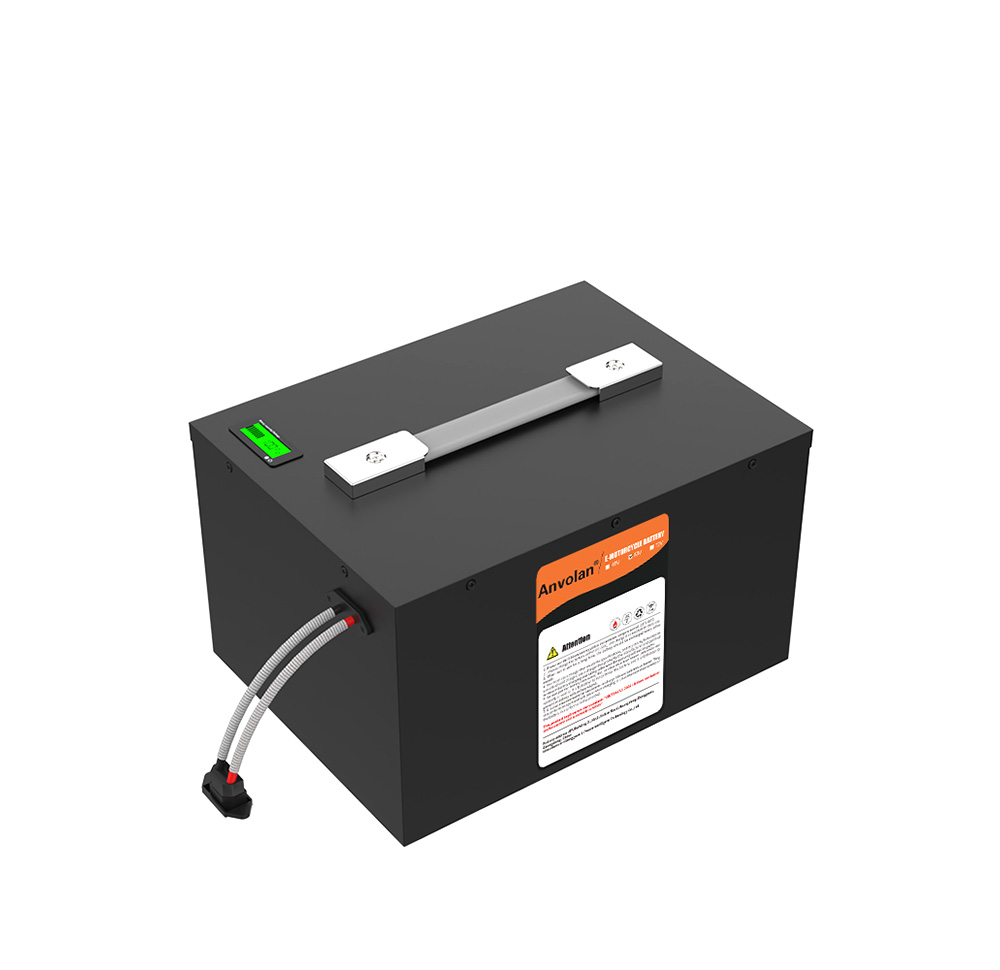

Model: XP-14S-48V20Ah-C-EM
Casing: Metal
Cell: Li-polymer 14S
Voltage: 48V
Capacity: 20Ah
Cycle Life: >800
Max Working Voltage: 59.5V
Voltage of Charger: 58.8V
Charge Current: 10A max
Discharge Current: 30A
Overall Description:

Chat Now

Product Parameter

Product Description

Specification Download

Model XP-14S-48V20Ah-C-EM
Casing Metal
Cell Li-polymer 14S
Voltage 48V
Capacity 20Ah
Cycle Life >800
Max Working Voltage 59.5V
Voltage of Charger 58.8V
Charge Current 10A max
Discharge Current 30A
Discharge Current (Peak) 70A (50mS)   85A (100mS)
Discharge Cut-Off Voltage 39.2V
Charge Temperature 0-45
Discharge Temperature -10-45
Protection Over Charge, Over Discharge, Over Current, Short Circuit, cell balancing, etc
Power Level Indicator LCD
Input/Output C-14 3PIN male
Protocol Optional
Size: 240*180*145mm
Weight KG max
Certificate MSDS, UN38.3, Sea Transfer of Goods
Package UN Carton
Warranty 12 months
