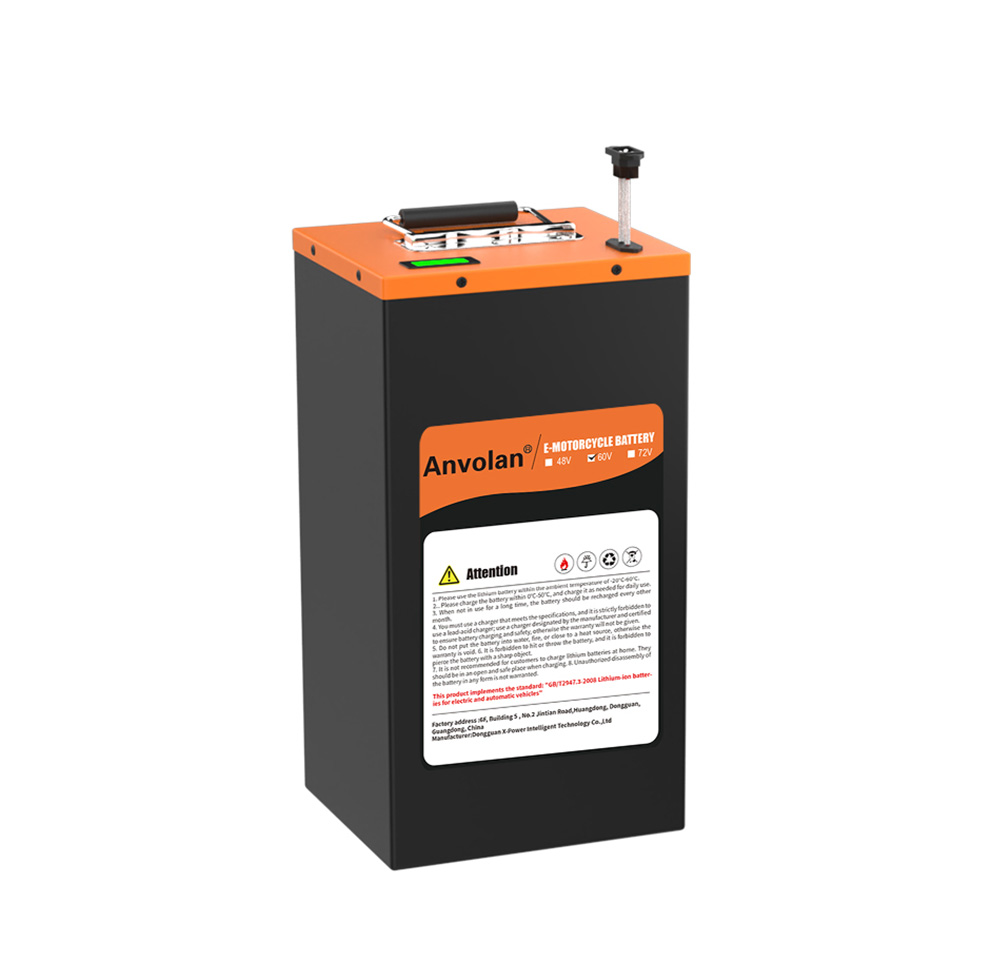

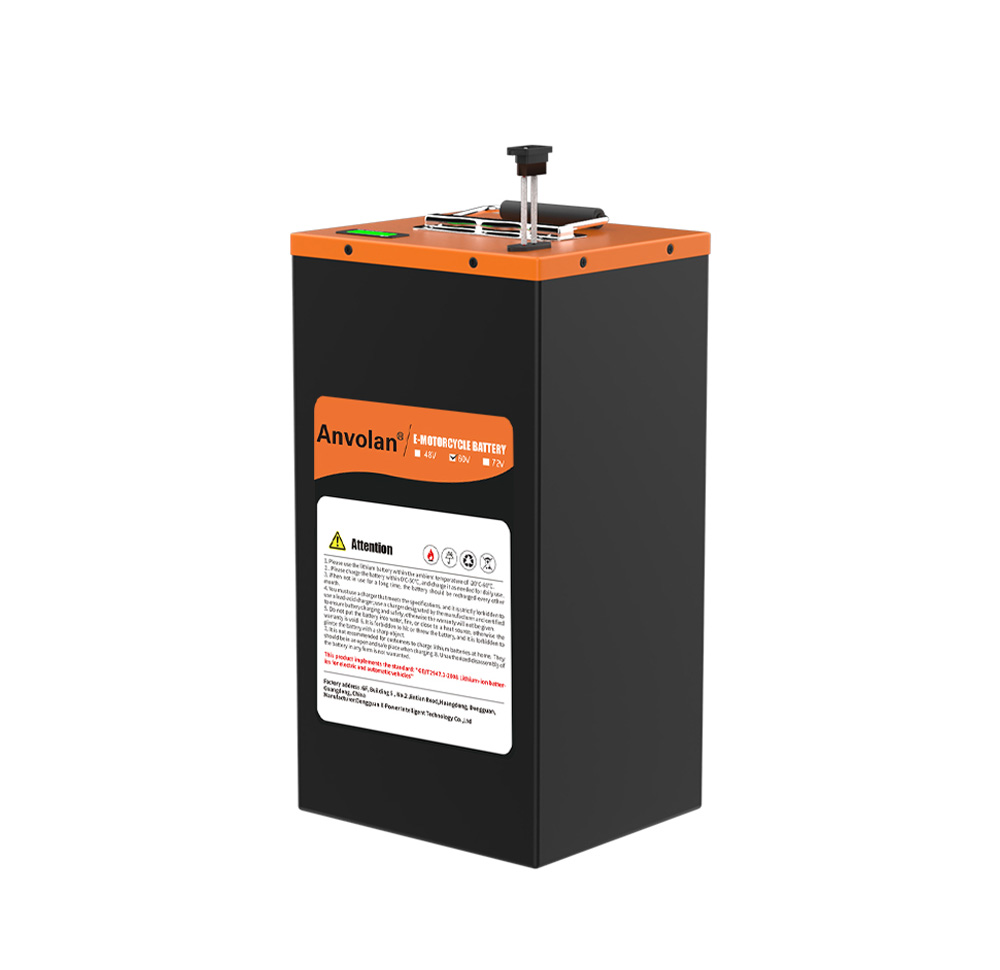

| Model | XP-14S-48V30Ah-B-EM |
| Casing | SPCC with coating |
| Cell | NCM Li-polymer 14S (FN) |
| Voltage | 48V |
| Capacity | 30Ah |
| Cycle Life | >800 |
| Max Working Voltage | 59.5V |
| Voltage of Charger | 58.8V |
| Charge Current | 20A max |
| Discharge Current | 40A |
| Discharge Current (Peak) | 90A (50mS) 110A (100mS) |
| Discharge Cut-Off Voltage | 39.2V |
| Charge Temperature | 0℃-45℃ |
| Discharge Temperature | -10℃-45℃ |
| Protection | Over Charge, Over Discharge, Over Current, Short Circuit, cell balancing, etc |
| Power Level Indicator | LCD |
| Input/Output | C-14 3PIN male |
| Protocol | Optional |
| Size: | 180*155*325mm |
| Weight | 10.2KG max |
| Certificate | UN38.3 (Under Processing) |
| Package | UN Carton |
| Warranty | 12 months |
