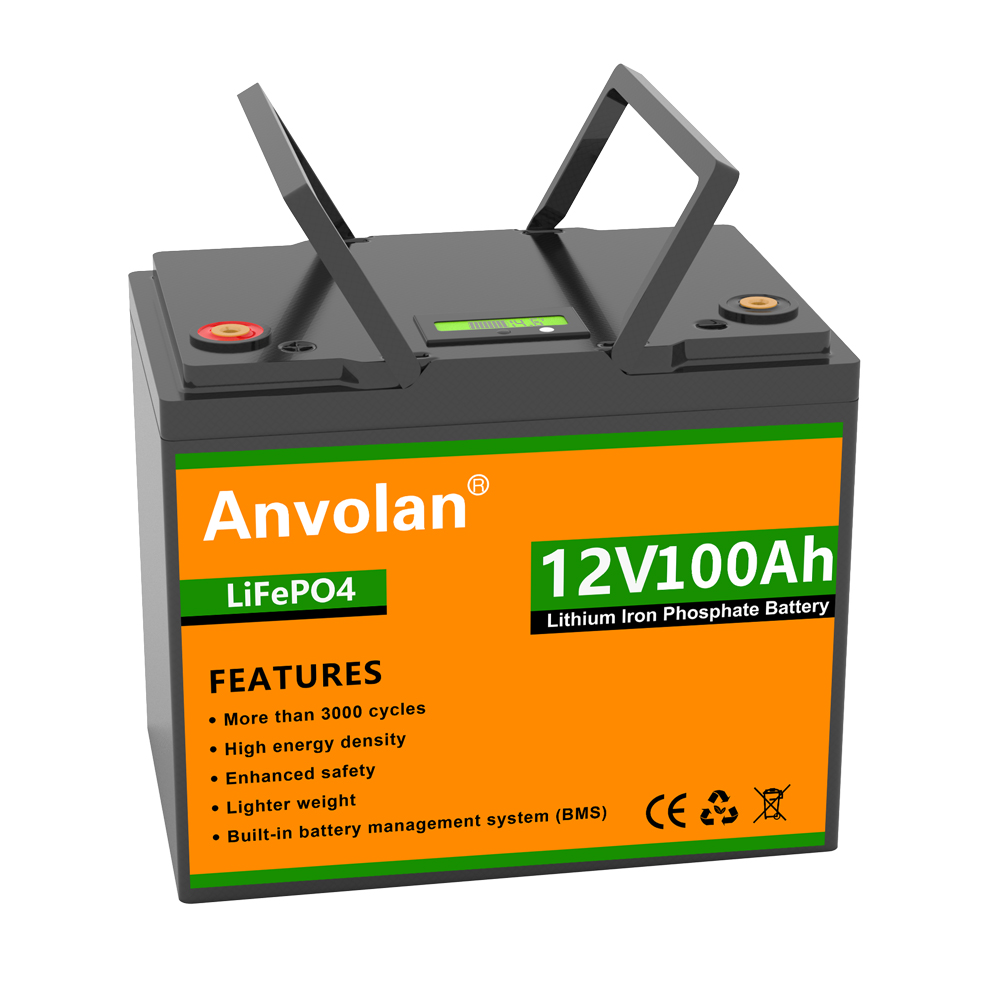

12v 100ah lifepo4 battery
Model:XP-LFP12100
Nominal Voltage / Capacity: 12.8V 100Ah
Charge Cut-Off Voltage:14.6V
Discharge current:50A
Discharge Current (Peak):330A (1.4S)
Power Level Indicator:LCD
Discharge Temperature:'-20℃-55℃
Size:260*168*209mm
Weight:10KG
| Model | XP-LFP12100 |
| Casing | ABS |
| Cell | LiFePo4 Prismatic |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Cycle Life | >3000 |
| Charge Cut-Off Voltage | 14.6V |
| Charge Current | 100A |
| Discharge Current | 100A |
| Discharge Current (Peak) | 330A (1.4S) |
| Discharge Cut-Off Voltage | 9.2V |
| Power Level Indicator | LCD Display option (USD2.8/pcs) |
| Charge Temperature | 0℃-55℃ |
| Discharge Temperature | -20℃-55℃ |

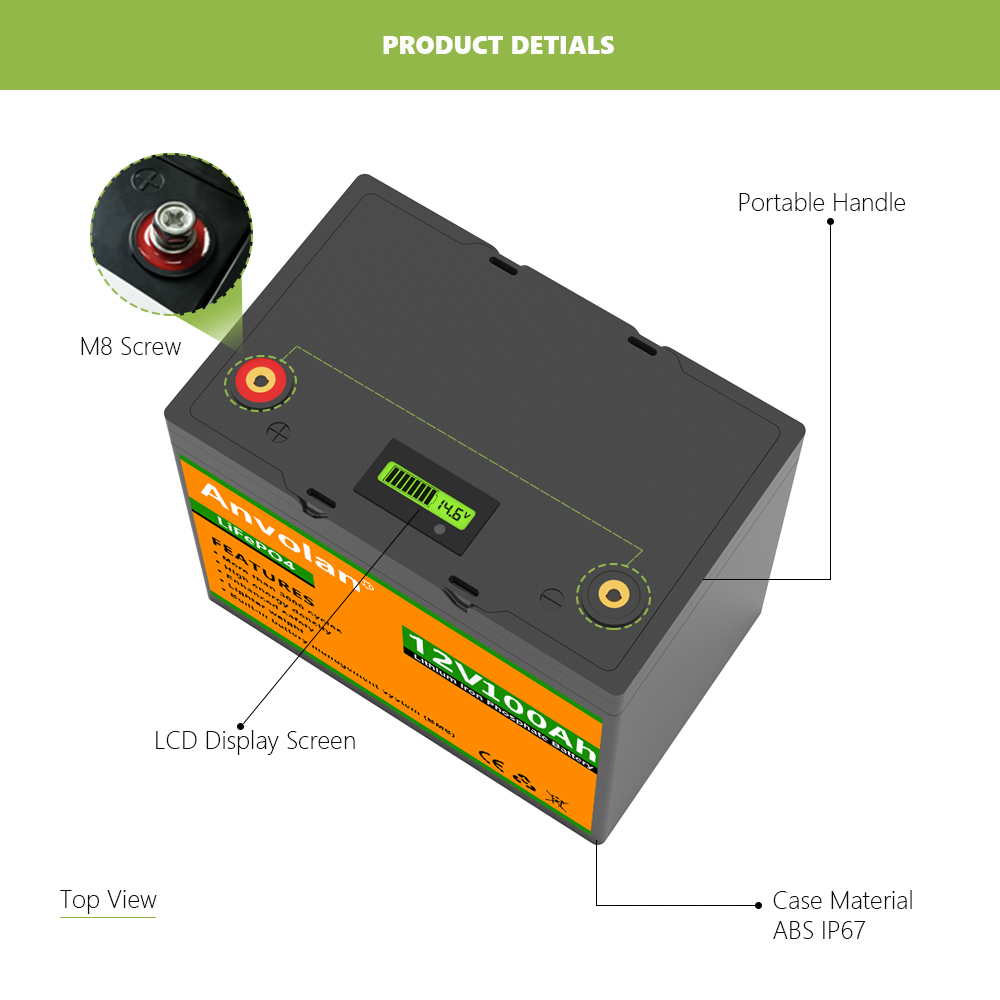

| Terminal | M8 |

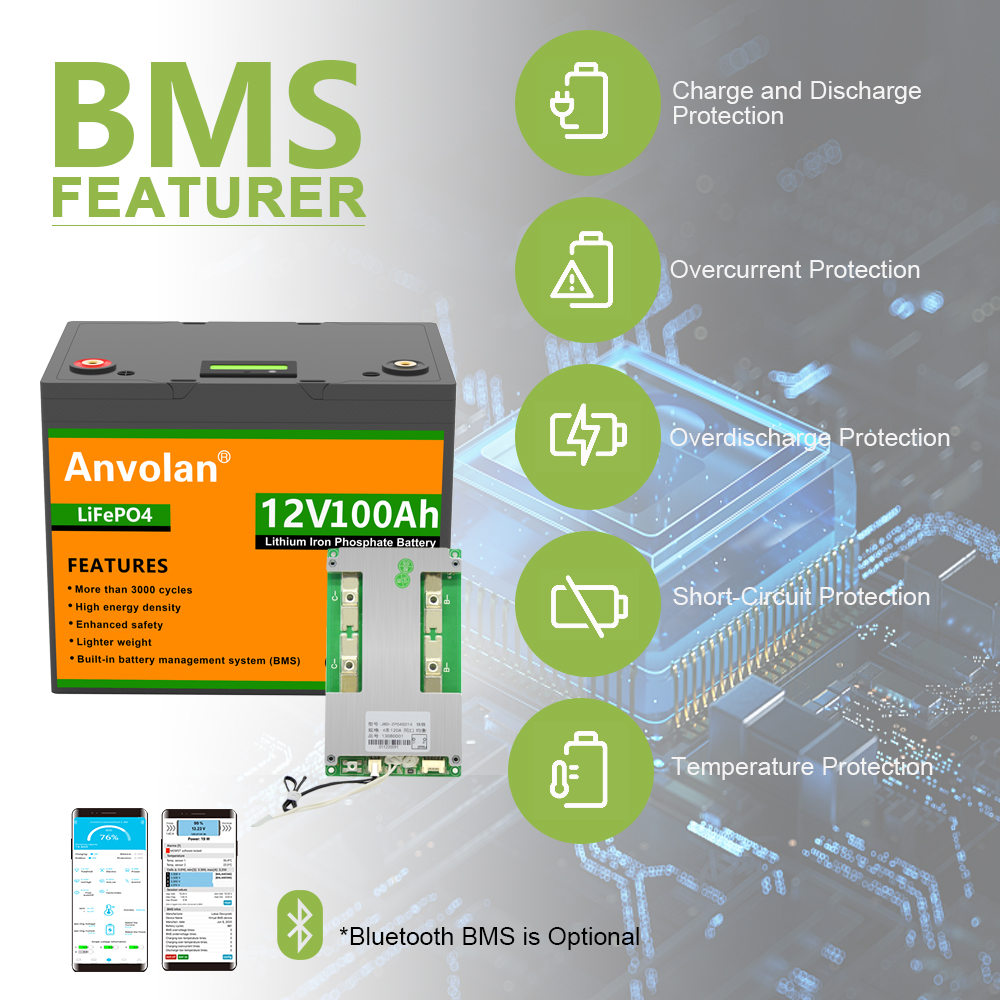

| Protection | Over Charge, Over Discharge, Over Current, Short Circuit |
| Protocol | Bluetooth Optional (USD20/pcs) |

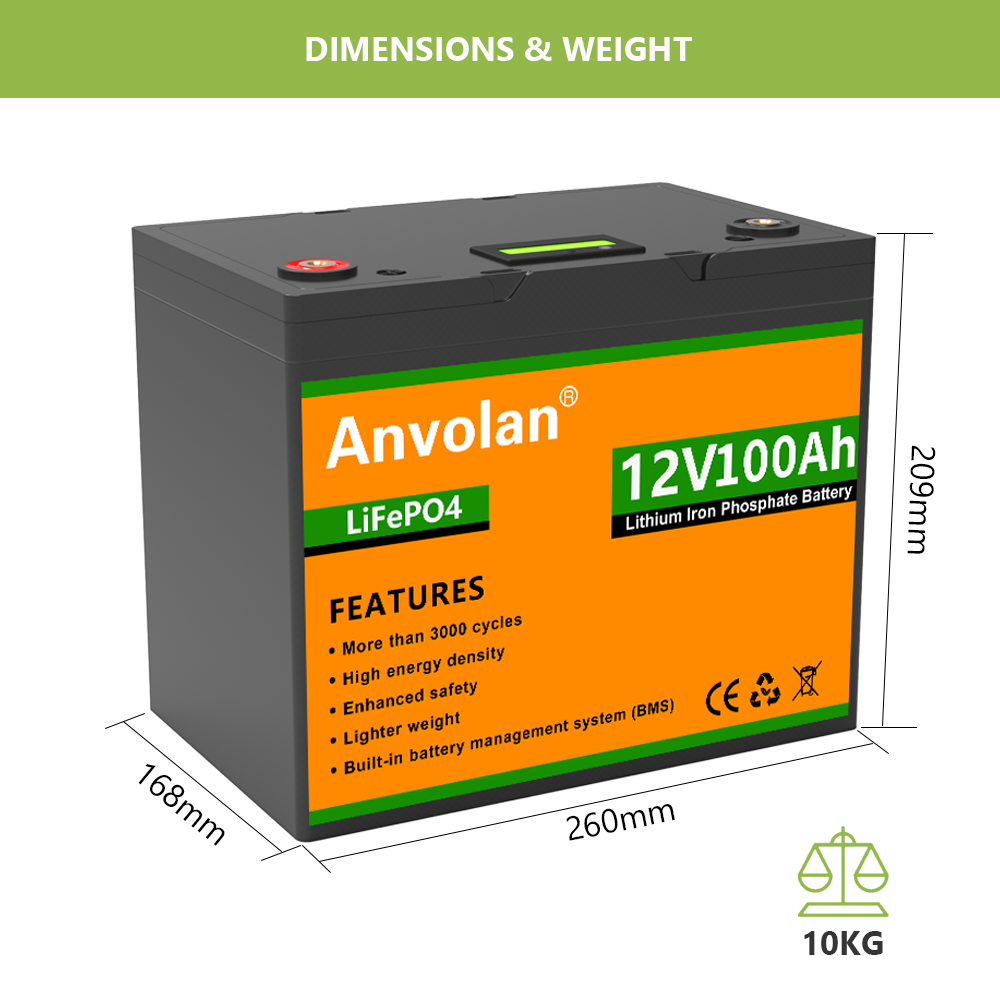

| Size: | 260*168*209mm |
| Weight | 10KG |
| Certificate | UN38.3、CE EMC、CE LVD、IEC62133、 RoHS2.0、Reach |
| Package | 1pcs/UN Carton, Size:325*235*275mm |
| Warranty | 12 months |
| MOQ | 200pcs |
